Introduction to Pointers

Suppose a city has a house with an address for each house. You don’t get the house when you know the address, but you do get to know where to find it exactly. In C, pointers are used in the same way. A pointer does not hold a value, it holds the memory address of a variable.

Every variable you declare in C occupies a certain amount of RAM. That space has an address. It has a number, a way to tell you exactly where it is. A pointer is just a variable that contains one of those addresses.

int x = 10;       // ‘x’ holds the value 10
int *ptr = &x;    // ‘ptr’ holds the address of ‘x’

Why do pointers matter?

Without pointers, C would be far less powerful. They enable:

• Passing large data to functions (without copying)
• Run-time dynamic memory allocation
• Building data structures like linked lists, and trees
• Direct programming of hardware and device drivers

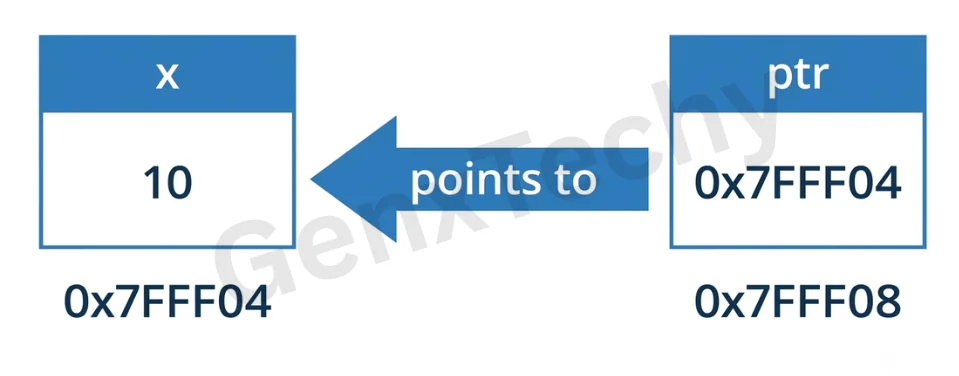

Fig 1: Variable and Pointer in Memory

Understanding Memory and Addresses

RAM is divided into millions of tiny cells that each store one byte of information and are given a unique address. C gives you two operators for dealing with addresses.

int x = 10;
int *ptr = &x;

printf("%d\n", x);     // Output: 10       (value of x)
printf("%p\n", &x);    // Output: 0x7FFF04 (address of x)
printf("%d\n", *ptr);  // Output: 10       (value at ptr's address)

  *ptr means “look at the address in ptr and read the value at that address”. This is called dereferencing.

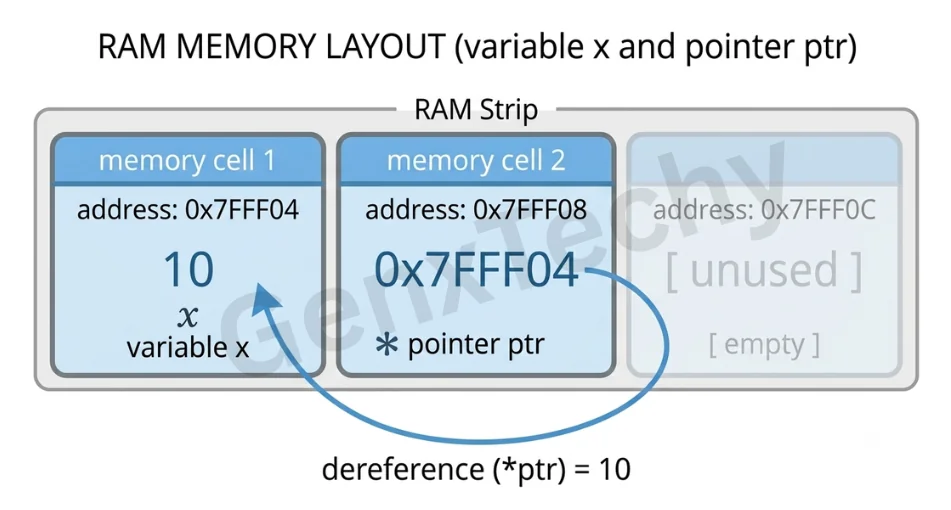

Fig 2: Memory Layout

Declaring and Initializing Pointers

The ‘*’ symbol is always present in pointer syntax and must match the data type it points to:

int   *ip;         // pointer to int
float *fp;         // pointer to float
char  *cp;         // pointer to char
int   *ptr = NULL; // NULL pointer — safe default, points nowhere

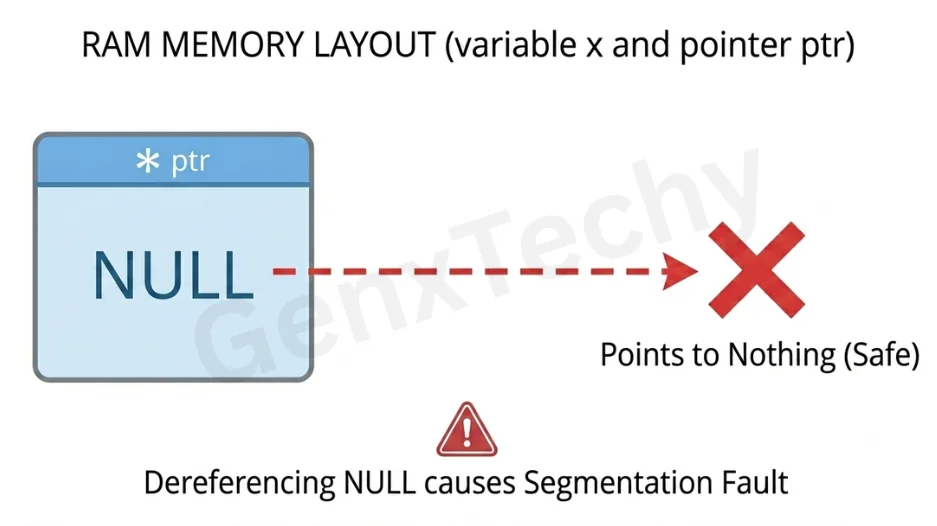

Fig 3: NULL Pointer Representation

• A NULL pointer says: ‘I am not pointing at anything yet.’
• Dereferencing NULL causes a segmentation fault — safer than a wild address.

Pointer Arithmetic

The pointers are not normal integers. Adding 1 to a pointer does not necessarily increase its address by 1 byte; the pointer is increased by the size of the type it points to.

int arr[5] = {10, 20, 30, 40, 50};
int *ptr = arr;   // ptr points to arr[0]

printf("%d\n", *ptr);   // 10
ptr++;                   // moves forward sizeof(int) = 4 bytes
printf("%d\n", *ptr);   // 20

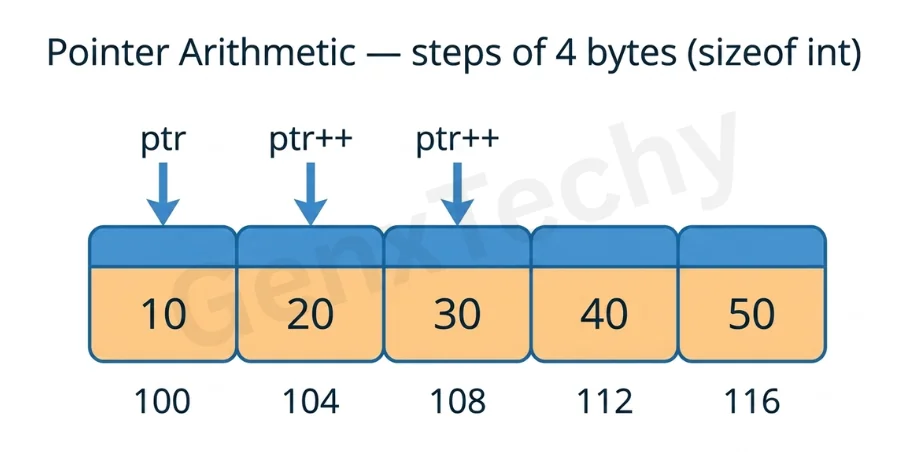

Fig 4: Pointer Traversing an Array

Pointers and Arrays

In C programming the name of an array is a pointer to the first element of the array. arr and &arr[0] are the same.

int arr[5] = {10, 20, 30, 40, 50};

// These two expressions are equivalent:
printf("%d\n", arr[2]);       // 30
printf("%d\n", *(arr + 2));   // 30

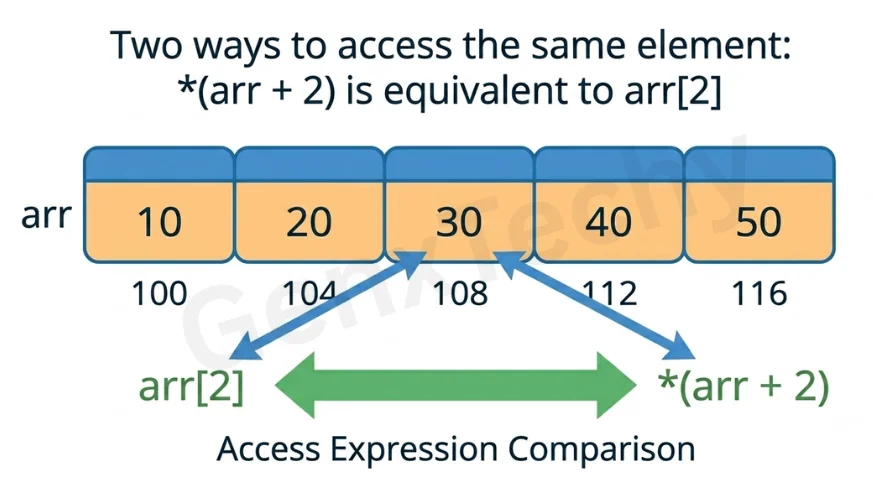

Fig 5: Array Memory Representation

Pointers and Functions

By default C passes arguments by value, the function gets a copy. The changes inside the function do not affect the original. Pointers give you call by reference, allowing functions to modify the caller’s variables directly.

// Call by value — does NOT swap
void swap_wrong(int a, int b) {
    int temp = a; a = b; b = temp;  // swaps local copies only
}

// Call by reference — DOES swap
void swap(int *a, int *b) {
    int temp = *a;
    *a = *b;
    *b = temp;
}

// Usage:
int x = 5, y = 10;
swap(&x, &y);
// x is now 10, y is now 5

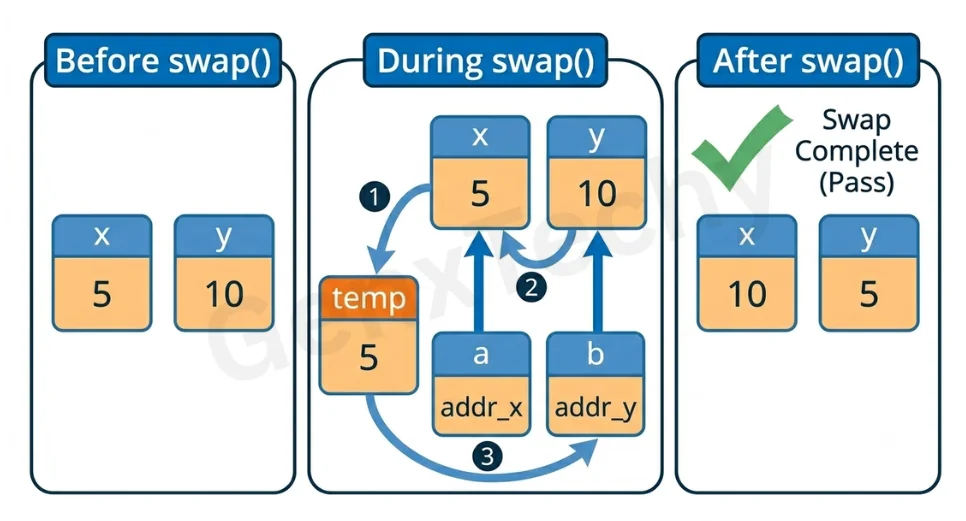

Fig 6: Swap Function Step-by-Step

Pointers and Strings

In C, a string is an array of characters terminated with the null terminator ‘\0’. A char* pointer can walk it character by character.

char str[] = "Hello";
char *ptr = str;

while (*ptr != '\0') {
    printf("%c ", *ptr);   // Hello
    ptr++;
}

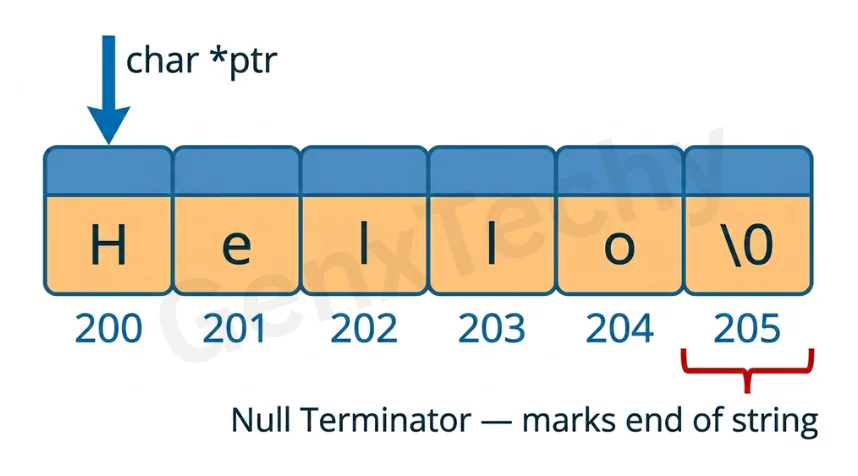

Fig 7: String Stored in Memory

Double Pointers (Pointer to Pointer)

A double pointer holds the address of a pointer. This is written in ‘**’.

int   x  = 10;
int  *p  = &x;    // p  holds address of x
int **pp = &p;    // pp holds address of p

printf("%d\n",   x);    // 10
printf("%d\n",  *p);    // 10
printf("%d\n", **pp);   // 10

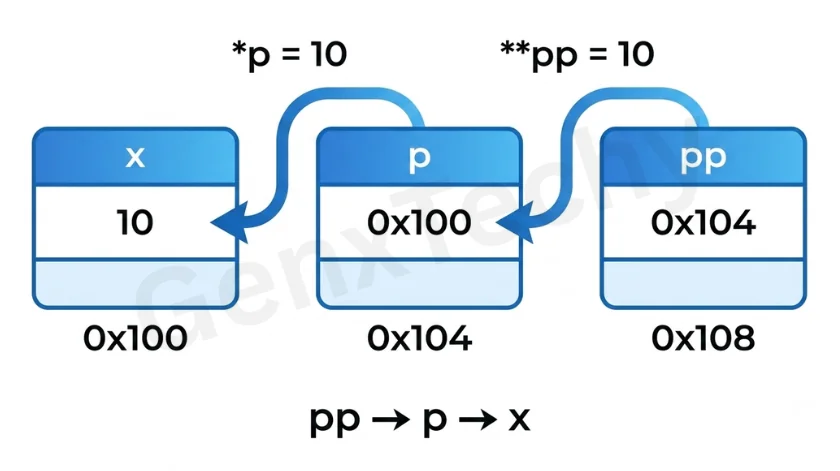

Fig 8: Double Pointer Memory Chain

Double pointers are very common in functions that want to change a pointer itself (e.g. malloc wrappers), and in 2D arrays and arrays of strings.

Function Pointers (Advanced)

Just as you can point to data, you can point to functions. A function pointer stores the address of a function and lets you call it indirectly — essential for callbacks, plugin architectures, and embedded systems.

int add(int a, int b) { return a + b; }
int sub(int a, int b) { return a - b; }

// Declare a function pointer matching the signature
int (*funcPtr)(int, int);

funcPtr = add;
printf("%d\n", funcPtr(3, 4));   // 7

funcPtr = sub;
printf("%d\n", funcPtr(3, 4));   // -1

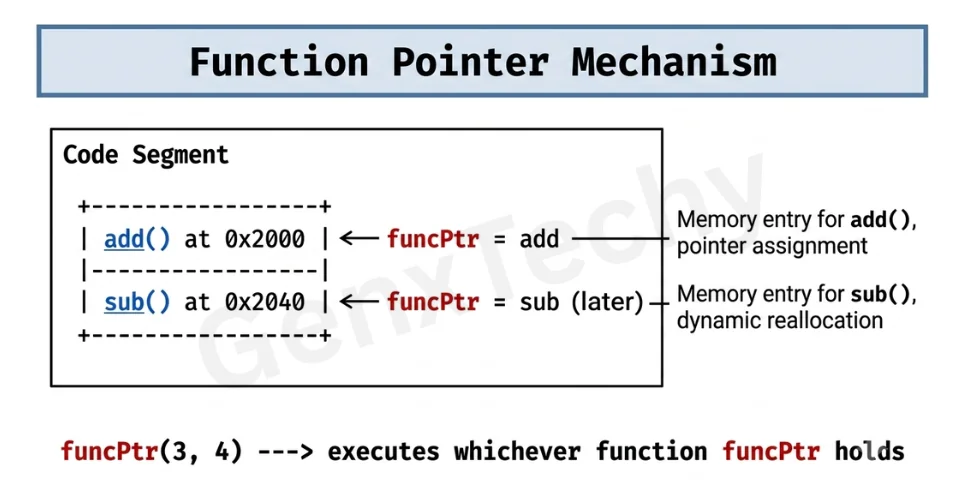

Fig. 9: Function Pointer Mechanism

Function pointers power callback functions in the C standard library (qsort, bsearch), interrupt service routines in embedded firmware, and virtual function tables in object-oriented C patterns.

Common Mistakes and Pitfalls

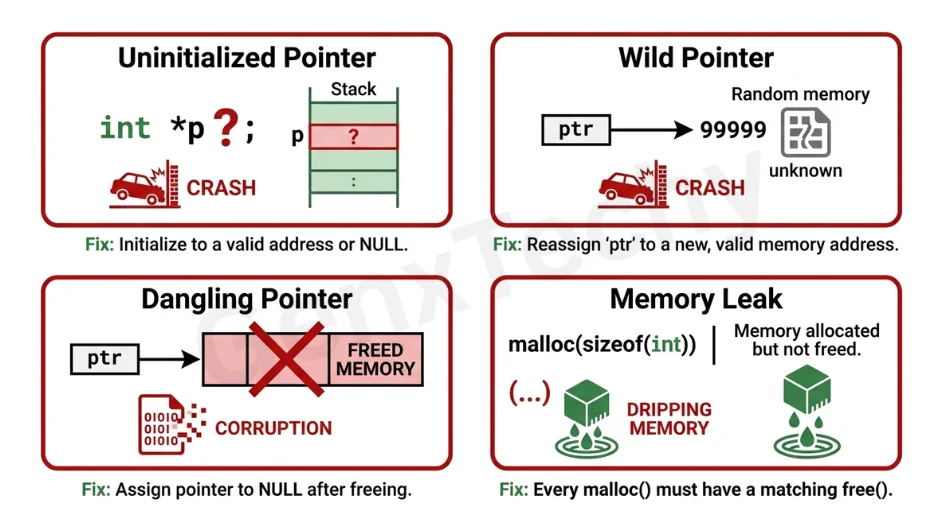

Fig. 10: Common Pointer Errors

Practical Applications of Pointers

Pointers are the backbone of systems programming. Here’s where they appear in the real world:

• Linked Lists & Trees: Each node contains a pointer to the next/child node, enabling dynamic, non-contiguous data structures.
• Operating Systems: The OS kernel uses pointers to manage process tables, file descriptors, and page tables.
• Embedded Systems: Microcontroller registers are accessed through fixed memory addresses — pointers let C code read and write hardware directly.
• Device Drivers: Drivers map hardware I/O ports to memory-mapped addresses, accessed entirely via pointers.
• VLSI & Hardware Interfacing: Memory-mapped I/O in SoC design uses pointer-like addressing to configure hardware blocks.
• Sorting & Searching: qsort() in the C standard library takes a function pointer for comparison, making it work with any data type.
